220/20 kV Pule-Alam Substation

On by to EPC

NEPS Electrical Transmission Projects – Phase I, 220/20 kV Substation at Pule Alam, Logar Province, Afghanistan

  • Voltage Rate 220 kV to 20 kV
  • 4× 16 MVA, 50 Hz, Power Transformers
  • Double Main Bus & Transfer Bus System
  • 2 Incoming/Outgoing 220 kV and 4 Outgoing 20 kV Feeders

Client: US Army Corps of Engineers (USACE)

Prime Contractor: Assist Consultants Inc.

Date: Jun. 2016 to Oct. 2017 (scheduled)

Location: Pul-e Alam, Logar Province, Afghanistan

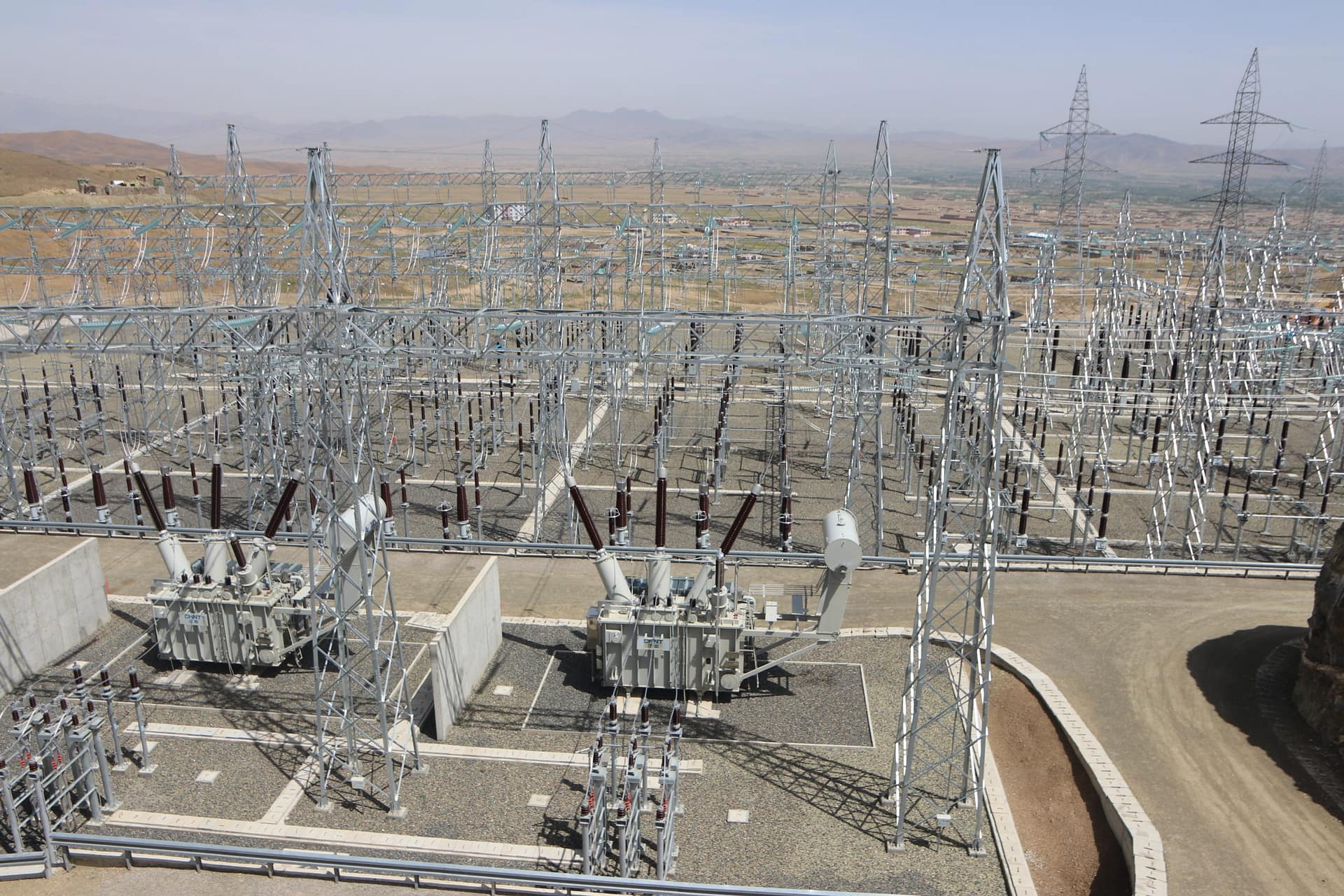

Pul-e-Alam substation does have two 220 kV line bays, four 220/20 kV transformers rated 16 MVA each, 20 kV yard with indoor switchgear. This substation plays a strategic role for power distribution in the Province. Four outgoing 20 kV feeders will energize important areas/facilities within the Province including Pul-e Alam City, Kabul-Logar Highway, major towns, and numerous villages where power needed for agricultural purposes.

Novin Simia is responsible for provision of installation, testing and commissioning services the Pul-e-Alam substation in Logar Province.
